Product Details:
Payment & Shipping Terms:
|
Usage: | Belt Buckle | Application: | Airport, Customs, Electronic Factory |
---|---|---|---|
Model Number: | VO-600 | Properties: | Stable Performance |
Working Power: | 110V-220V , 30W | ||
High Light: | door metal detectors,body scanner metal detector |

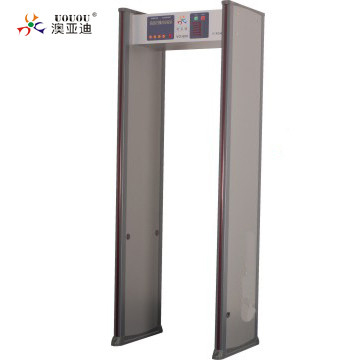

6 Zones VO-600 Archway Metal Detector With Stable Performance
Simple structure design and stable performance
6 zones
DSP controlled
Unique intelligent sensitivity adjustment by scanning memory
Specifications:
Product passage dimensions |
2,050 x 750 x 530mm |
Product external dimensions |
2,200 x 870 x 530mm |
Working power |
AC: 110V-220V |
Working power |
30W |
Working temperature |
-20℃-55℃ |
Features:
Consists of two parts: left-right detecting gate and mainframe, the material used is fire-proof board that is fire-proof, wear-resisting and high-strength
There are 6 detecting areas spreading evenly over the left-right detecting gate board from its top to bottom (it is called a 6 positions detecting)
On the sides of left-right detecting gate board, there are aluminum alloy strips for protection, even on it top and bottom, there are some protecting and fixing wares
The control circuit is highly integrated, which is especially stable in performance and long lifespan
Eight work frequency spots are set up in an array;standard distance to assemble the gates is 50cm
Information will be marked down on the front panel such as number of persons passed-by, times of alarm, strength of interfering signals and more
Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity, it can be adjusted in 100° within its scope, it can meet the customer's demand to reject the items such as belt buckle, gold or silver jewelry and more
The product realizes the function to adjust the sensitivity by intelligence, if you want to detect a metal, you can put it at the middle of the gate to scan, and then you finish the adjustment of sensitivity
No harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc and more

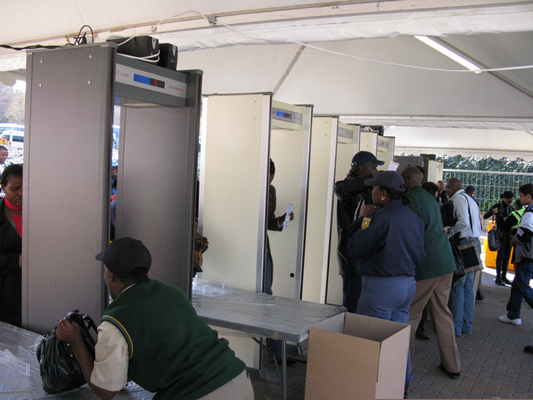

Applications: Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Bar and so on
