Product Details:
Payment & Shipping Terms:
|
High Light: | door metal detectors,body scanner metal detector |
---|

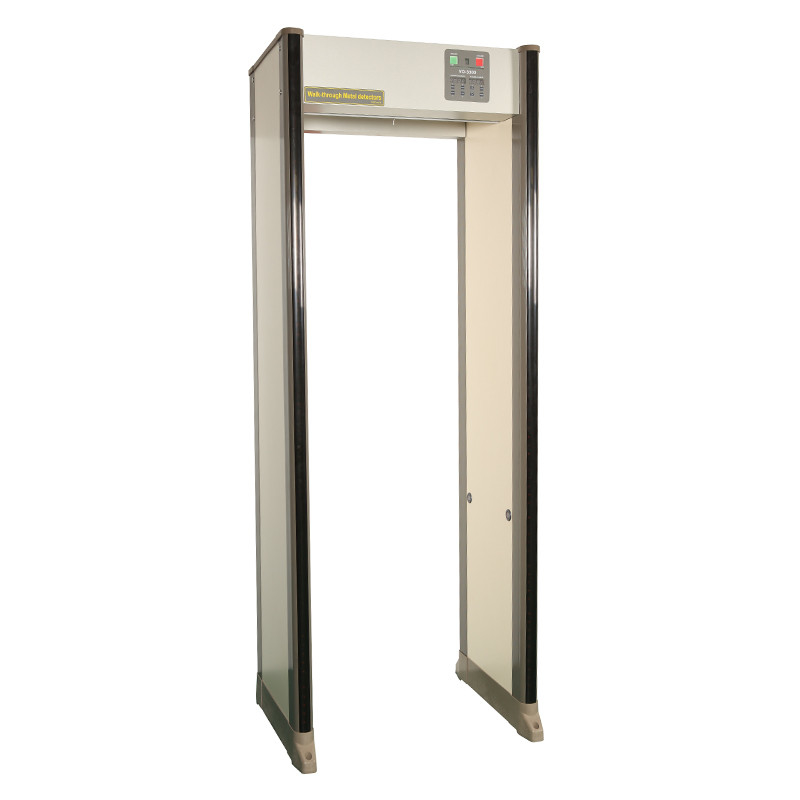

VO-3300, Sensitive Security Archway Metal Detector, Door frame body scanner
Walk through Metal Detector with 33 Zones, Long Standby, 99 Adjustable Sensibility
Applications:
Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Bar and so on.
Functions:
Two parts: right and left detecting board and mainframe ergonomically designed, tamper-proof and anti-blind spots designed
Pinpoint zone detection: 33 zones shows precise target locations on the left, center and right side of the body from head to toe
Independent detection and LED displaying on the right, center and left zone, the maximum sensitivity is one-coin sized
If the target metal detected on the left zone, the left LED will light,if on the right zone, the right LED will light, and if center,the left and right LED both light
Automatic recording number of people passed, alarming times and strength of interference on the large LCD
High capability of anti-interference: the adoption of digital,analogy and left and right balanced technology can prevent false or omitted alarming,which greatly enhance the capability of anti-interference
The metal detecting gate can be operated either through the remote control or by the operation panel directly
A processor based continuous wave multiple sensor measurement method with self-testing diagnostics and high stability digital signal processing
Adjustable sensibility: each zone sensitivity can be adjusted separately, ranging from 0 to 99
Protection with password: can only allow the authorized person for the operations, highly safe
8 doors can be put side by side at intervals of only 50cm without mutual interference
Harmless to human body: low intensity magnetic field that is harmless to heart pacemaker installed in human body, pregnant women, magnetic floppy, recording tapes and more
Specifications:
Product passage dimensions |
2,050 x 700 x 600 mm |
Product external dimensions |
2,200 x 800 x 600 mm |
Working power |
AC: 110V-220V |
Working power |
30W |
Working temperature |
-20℃-55℃ |
Net weight |
75 kg |
Gross weight |
90 kg |
Standard: |
GB15210-2003 |
Competitive Advantage:
Pinpoint Zone Detection: 33 zones shows precise target location on the left , center and right side of the body from head to toe
DSP and Microprocessor Controlled
Long Standby
