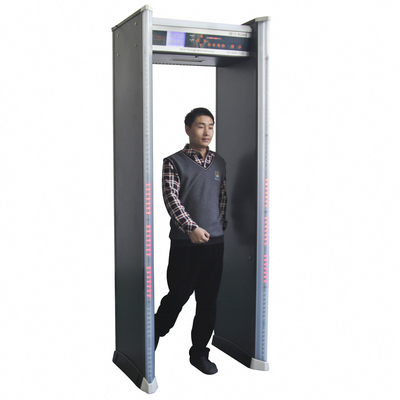

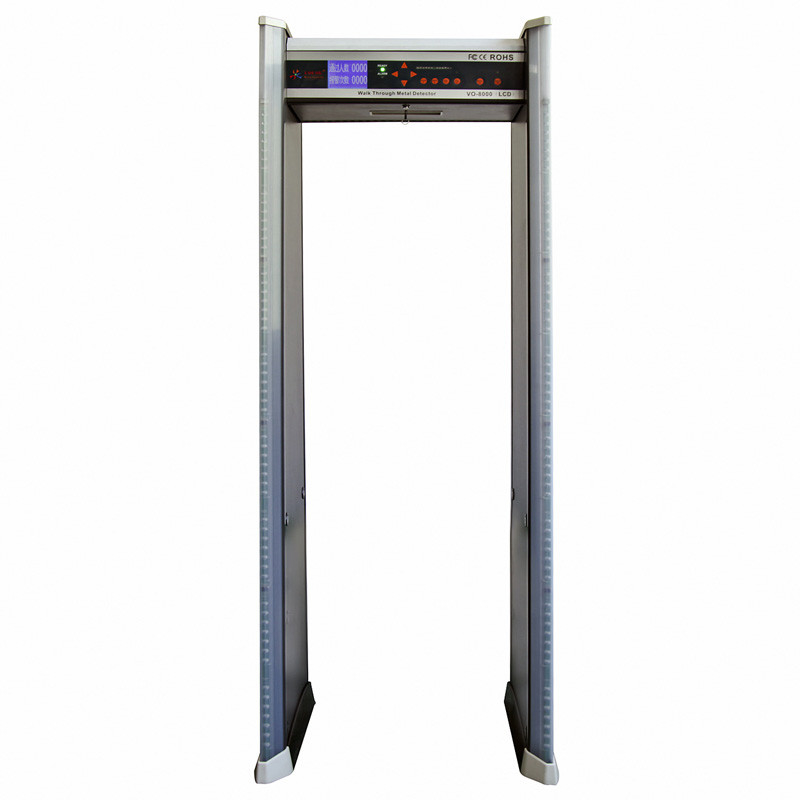

DSP Digital Walk Through Metal Detector With 8 High Precision Localization Zones

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  DSP Digital Walk Through Metal Detector With 8 High Precision Localization Zones Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC,ROHS,ISO 9001:2008
Model Number: VO-8000
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1 pcs/ 2carton
Delivery Time: 1-2 days after receive the payments
Payment Terms: T/T & Western Union
Supply Ability: 6000pcs/ Month
Detailed Product Description
High Light:

professional metal detector

,

walk through metal detector gate



DSP Digital Walk Through Metal Detector With 8 High Precision Localization Zones





Competitive Advantage:

ALL weather- proof ( outdoor or indoor use )

8 zones

Optional built in back-up battery

DSP and Microprocessor Controlled





Features:

Consists of two parts: left-right detecting gate + mainframe, the mainframe is using a very friendly design such as waterproof and anti-visual blind designs

There are 8 detecting areas spreading evenly over the left-right detecting gate board from its top to bottom, with built-in super shining LED indicating lights (it is called an 8 positions side lights display detecting)

On the sides of left-right detecting gate board, there are aluminum alloy strips for protection, with built-in super shining LED indicating lights, it can exactly indicate the exact position of detected item

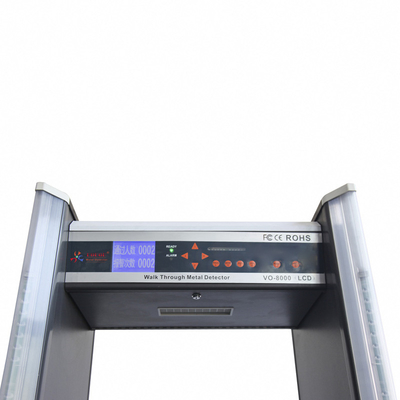

Information will be marked down on the super-large LCD front panel such as number of persons passed-by, times of alarm, strength of interfering signals, remote-controlled receiver and more

The control circuit, collecting circuit and calculation circuit are highly integrated, which are especially stable in performance, strong in anti-interference, exact in detecting and free from mistakes in reporting

The special remote controller is prepared to adjust all functions, power on or off the device easily

When connecting with power, the device will automatically turn on, diagnose and adjust

Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity

It can be adjusted in 100° within its scope, it can meet the customer's demand to reject the items such as belt buckle, gold or silver jewelry and more

Has the function of password protection to prevent any hostile change of parameters by any unauthorized person

No harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc and more





Applications:

Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Bar and  so on





Specifications:

Product passage dimensions

2,050 x 700 x 600mm

Product external dimensions

2,200 x 800 x 600mm

Working power

AC: 110V-220V

Working power

30W

Working temperature

-20℃-55℃

Standard:

GB15210-2003
