DSP Walk Through Metal Detector Microprocessor Control With 24 Zones

DSP Walk Through Metal Detector Microprocessor Control With 24 Zones

Specifications

LCD Walk Through Metal Detector
7 inch LCD screen
Adopt DSP technology
Perfect after-sales service

The style can be used in airport, banks, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center ..etc

(2). Specifications

Characteristic & Function

1. 7 inch LCD screen with Infrared remoter controller
2. Adopt advanced digital signal processing control replaced
3. traditional analog signal control, better stability.
4. Friendly windows interface, both Chinese and English program, easy to operate.
5. automatically checking left and right door panel, LED light and choose the best working frequency.
6. keep alarm records for inquiry (up to 9999 records)

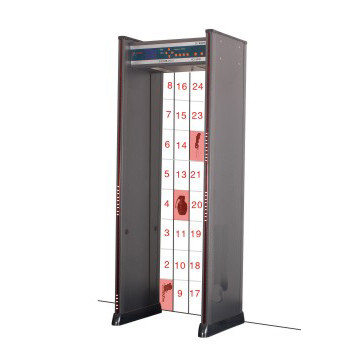

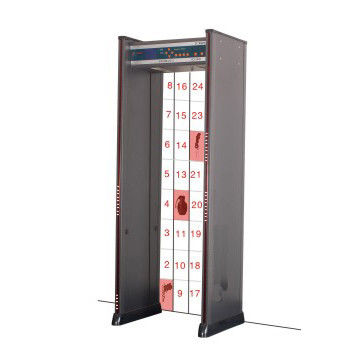

7. 24 detecting loops, by separate left, right,middle side detection to pinpoint detection(As follow picture)
8. Each zone has 99 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
9. 1-25s alarm time, 99 different sound volume and 12 tones for choose
10. LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
11. only the authorized person can operate.
12. interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
13. 6 preset programs for security application versatility
14. 4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
15. PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
16. Integrated and modularized circuit design lead to simple installation and more convenient after services.
17. Adjustable Passing speed: up to 100 persons/min
18. Background light: 0-99 seconds for choose
19. Battery Backup not less than 4 hours.
20. Calendar function: real time display year, month, date, hour, minute, second
21. Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.

  Network support: (For Option)

Applications:

Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Bar and  so on
