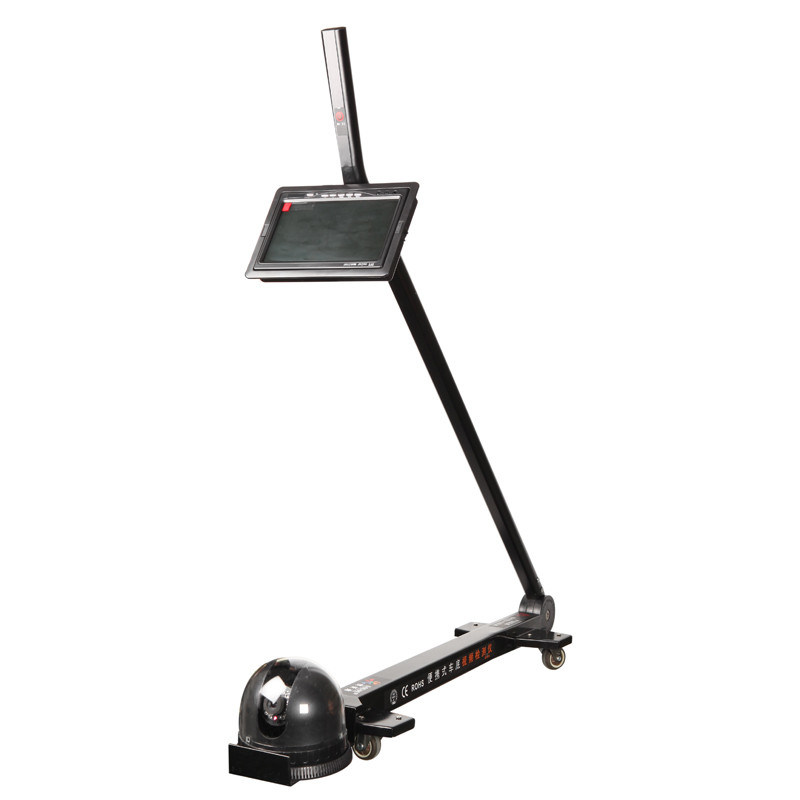

GP-918A Car Inspection Mirror with LCD Screen / High-definition Camera

GP-918A Car Inspection Mirror with LCD Screen / High-definition Camera

High resolution display

Water-proof protecting cover

Camera : 130°degrees front and rear, electronic control

Wireless remote control

Successful biding products in 2011 Universiade SHENZHEN

Specifications:

Functions and characters:

Used high-capacity lithium batteries for power supply, which has long lifespan and is small and light

Used a high-resolution LCD display, which has low-power consumption, effective and long working hours

Used for miniature wide angle camera, video of which is wider

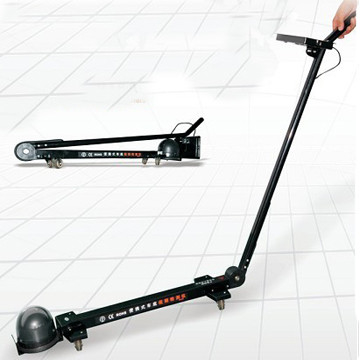

Based on the excellent design, the system uses two folding structure, the operating is extremely labor-saving

Using high-quality high-definition wide angle camera field of vision more broadly

With up to 360 degrees rotation angle, so that detection of non-existence of dead ends

With waterproof protection cover

With remote control

Technical parameters:

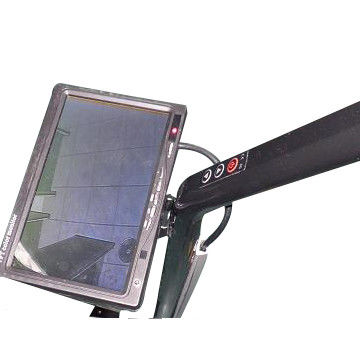

Display: 7-inch color LCD display

Battery capacity: 2,200mAh

Output voltage: 9 to 12.6V

Battery warning: battery voltage is below 10V, the buzzer sounds

Continuous working time: about 7 hours

Operating temperature: 0℃to 60℃

Camera rotation angle: 180 degrees

Type of camera: miniature wide angle with infrared night vision capability

Distinguishability (W x H): 480 x 234mm

Display/viewable area (W x H): 82.1 x 68.2mm

Dot pitch (W x H): 0.171 x 0.264mm

Horizontal resolution: 420TVL

Working voltage: 12V DC, 90mA

Total weight: 4.5 kg
