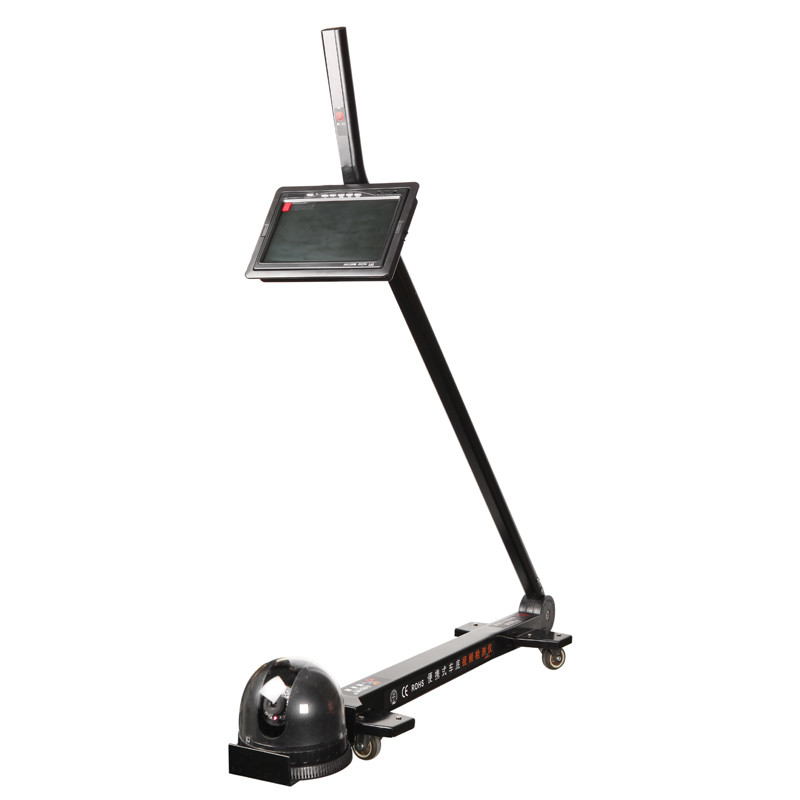

GP-918A Professional Security Car Inspection Mirror

large.img.alt
small.img.alt

Large Image :  GP-918A Professional Security Car Inspection Mirror Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2 - 3days
Payment Terms: T/T, Western Union
Supply Ability: 500 pcs
Detailed Product Description
High Light:

vehicle inspection mirror

,

under vehicle inspection mirrors

GP-918A Professional Security Car Inspection Mirror





Applications:



Be used to detect vehicles , machine , warehouse, school ,and factory equipment where can not be detect easily , It can be used in airport security, parking detecting , Military range check , and private vehicles detecting. And our models have been used in large sports meeting , important meeting, police ,famous hotels, factorys and so on





Functions and characters:



Used high-capacity lithium batteries for power supply, which has long lifespan and is small and light

Used a high-resolution LCD display, which has low-power consumption, effective and long working hours

Used for miniature wide angle camera, video of which is wider

Based on the excellent design, the system uses two folding structure, the operating is extremely labor-saving

Using high-quality high-definition wide angle camera field of vision more broadly

With up to 360 degrees rotation angle, so that detection of non-existence of dead ends

With waterproof protection cover

With remote control

Technical parameters:

Display: 7-inch color LCD display

Battery capacity: 2,200mAh

Output voltage: 9 to 12.6V

Battery warning: battery voltage is below 10V, the buzzer sounds

Continuous working time: about 7 hours

Operating temperature: 0 to 60°C

Camera rotation angle: 180 degrees

Type of camera: miniature wide angle with infrared night vision capability

Distinguishability (W x H): 480 x 234mm

Display/viewable area (W x H): 82.1 x 68.2mm

Dot pitch (W x H): 0.171 x 0.264mm

Horizontal resolution: 420TVL

Working voltage: 12V DC, 90mA

Total weight: 4.5kg





Specifications:



Display

7-inch color LCD display

Battery capacity:

2,200 mAh

Output voltage:

9 to 12.6 V

Operating temperature:

0℃ to 60℃

Camera rotation angle:

180 degrees

Distinguishability (W x H)

480 x 234 mm

Display/viewable area (W x H)

82.1 x 68.2 mm

Dot pitch (W x H)

0.171 x 0.264 mm

Horizontal resolution:

420 TVL

Working voltage:

12 V DC, 90 mA





Competitive Advantage:



High resolution display

Water-proof protecting cover

Camera : 130°degrees front and rear, electronic control

Wireless remote control

Successful biding products in 2011 Universiade SHENZHEN
