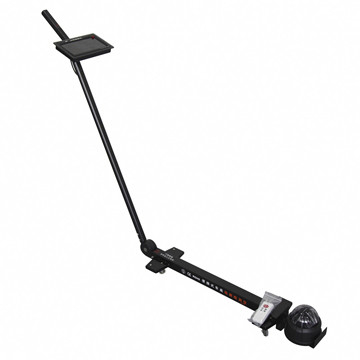

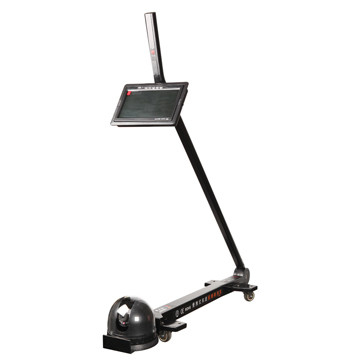

High Definition Car Inspection Mirror Effective With LCD Screen

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Definition Car Inspection Mirror Effective With LCD Screen Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC,ROHS,ISO 9001:2008
Model Number: GP-918A
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Packaging Details: 1 pcs/ carton
Delivery Time: 1-2 days after receive the payments
Payment Terms: T/T & Western Union
Supply Ability: 6000pcs/ Month
Detailed Product Description
High Light:

under vehicle search mirrors

,

under vehicle inspection mirrors



High Definition Car Inspection Mirror Effective With LCD Screen





Competitive Advantage:

Soft start boot, camera has function with electronic control around 130 degrees, electronic rotation plane 360 degrees , wireless remote control, and it can be configured to store





Description:

Functions and characters:

Use high-capacity lithium batteries for power supply, which has long lifespan and is small and light

Use a high-resolution LCD display, which has low-power consumption, effective and long working hours

Use miniature wide-angle camera, video of which is wider

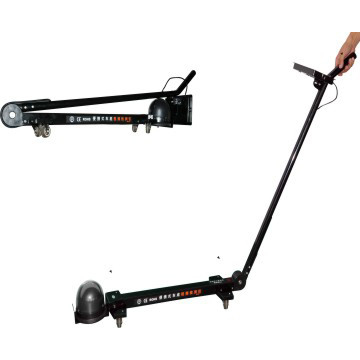

Based on the excellent design, the system uses two folding structure, the operating is extremely labor-saving

Using high-quality high-definition wide-angle camera field of vision more broadly

With up to 360 degrees rotation angle, so that detection of non-existence of dead ends

With remote control

Technical parameters:

Display: 7-inch color LCD display

Total weight: 4.5kg

Battery capacity: 2,200mAh

output voltage: 9 to 12.6V

Battery warning: battery voltage is below 10V, the buzzer sounds

Continuous working time: about 7 hours

Operating temperature: 0℃to 60℃

Camera rotation angle: 180 degrees

Type of camera: miniature wide-angle with infrared night vision capability

Distinguishability (W x H): 480 x 234mm

Display/viewable area (W x H): 82.1 x 68.2mm

Dot pitch (W x H): 0.171 x 0.264mm

Horizontal resolution: 420TVL

Working voltage: 12V DC, 90mA





Applications:

Be used to detect vehicles , machine , warehouse, school ,and factory equipment where can not be detect easily , It can be used in airport security, parking detecting , Military range check , and private vehicles detecting. And our models have been used in large sports meeting , important meeting, police ,famous hotels, factorys and so on





Specifications:

Display

7-inch color LCD display

Battery capacity:

2,200 mAh

Output voltage:

9 to 12.6 V

Operating temperature:

0℃ to 60℃

Camera rotation angle:

180 degrees

Distinguishability (W x H)

480 x 234 mm

Display/viewable area (W x H)

82.1 x 68.2 mm

Dot pitch (W x H)

0.171 x 0.264 mm

Horizontal resolution:

420 TVL

Working voltage:

12 V DC, 90 mA

High Definition Car Inspection Mirror Effective With LCD Screen
