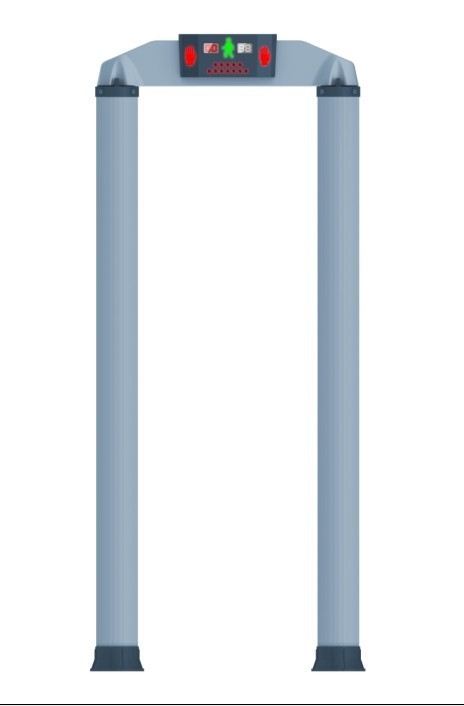

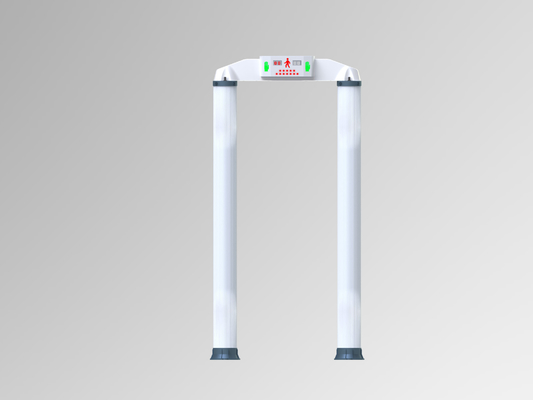

Lightweight Door Frame Metal Detector Waterproof With Single Zone

Lightweight Door Frame Metal Detector Waterproof With Single Zone

Features:

Immediate selection of International security standards, detection of magnetic, non-magnetic and mixed alloy metal weapons, all functions programmable and controlled by a microprocessor

programming via built-in keypad and display or RS-232 serial connection to remote control unit (RCU2), a PC or a computer network programming access protected by hardware key

High-speed of detection

Very high-immunity to electromagnetic and mechanical interference

Multiple installations: automatic synchronization between two or more metal detectors with a reciprocal distance of down to 5 cm without the use of cables control unit incorporated into the detector professional high-integration and reliable electronics

No initial or periodic calibration

Easy maintenance: modular control unit for a rapid replacement

Installation data:

Power supply: 90 to 264V AC, 47 to 63Hz, 40VA

Operating temperature: -20 to+70°C

Storage temperature: -35 to +70°C

Relative humidity: 0 to 95% RH (without condensation)

Metal detector set weight: 35.6kg

Complete set weight: 50kg

Alarm modes:

Visible signals

High-intensity display

Green and red metering signals proportional to the mass of the object detected audible signals

High-acoustic intensity alarm signal

Volume and tone of alarm signal can be programmed

Digitally adjustable sensitivity with a wide range of values.

All functions are controlled by a microprocessor.

Programming access protected by hardware key.

Automatic synchronization between two or more Metal Detectors, at a distance of down to 5 cm from each other, without using cables.

Professional high integration and high reliability electronics.

Control unit incorporated in the detector.

No initial or periodic calibration.

Easy maintenance. Modular control unit for a rapid replacement.
