Portable Walk Through Metal Detector Foldable With 3 Detecting Zones

Portable Walk Through Metal Detector Foldable With 3 Detecting Zones

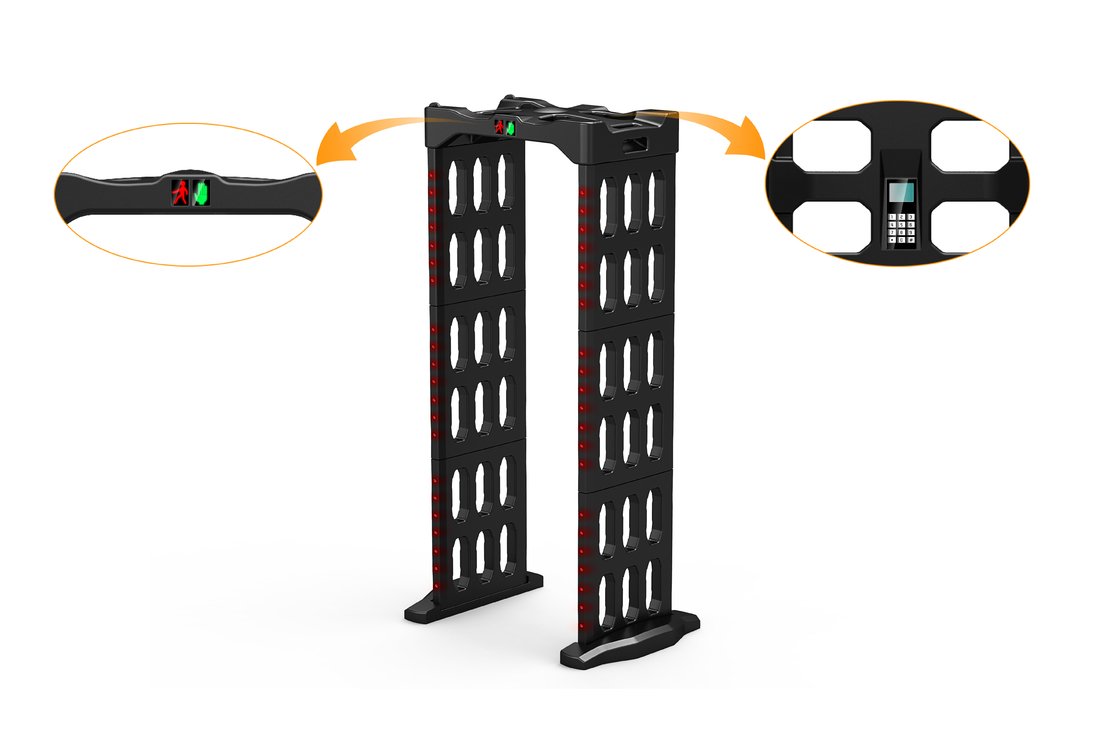

Portable and foldable walk through metal detector

3 detecting zones

backup batterys for more than 40 hours

one person can install it within 5 minutes

Easy for hand carry

Specifications

Security Digital Portable

Three Sensor Zones with Brilliant LED

Portable and foldable

Self diagnostic

Applications:

1. Schools and sports event
2. Meetings and VIP Security
3. Outdoors security protect
4. All the place that need the high sensitivity metal detect

Functions and characters :

1. Head-to-Toe, Zone Specific Detected.
2. 200 adjustable sensibility levels.
3. There are three individual detect zones
4. Self calibration once power on.
5. Self diagnostic, it will inform the user when exit the system
6. Memory Feature Stores Settings for last operator when power off.
7. DSP and Microprocessor Controlled , login into the control panel safely.
8. Automatic counting function

Technical parameters:

1. Standard configuration: Battery ( working for 40 hours )
2. Gross weight :  < 50 KG
3. Dimensions after disassemble : 90*58*66( cm ), it equals a suitcase size
4. Standard : FAA NILECJ-0601.02
5. Digital I/O keypad with security access control, Brilliant LED Bar Graph Indicates
6. Target Strength, LCD touch panel.
7. Adjustable Volume Control
8. Memory Feature Stores Settings for the special environment
9. self test and Self calibration once power on
10. Memory for the last environment and power off voice prompt
11. Transportation convenience
12. Trends : Single person carry
13. Net weight : 90lbs
14. Install and disassemble  within 5 minutes
15. Single person setting:

High Efficiency : the special detection from the top to bottom

Three Sensor Zones with Brilliant LED

Adjustable sensitivity: (200 levels )

Designed by customers demand

Designed by environments using.

1. Indoor and outdoor using
2. It is made of ABS Polycarbonate alloy material, strong impact resistance and permanent using.
3. Battery ( including the AC adapter and charger )
4. The battery can continuous working for 40 hours
5. The folded Dimensions : 37″(0.9m)″×23″(0.58m) ×26″(0.66m)

Operating Environment:

1. Operating temperature : -20℃ to +70℃ ( -4℉ to +158 ℉ )
2. Relative Humidity :95%
3. IP Grade : IP55
4. UV protection

Specifications:

Competitive Advantage:

1. Anti-terrorist and Police equipment
2. Portable and foldable, can be transported in a car or van.
3. Single person assembly without tools - in less than 5 minutes
4. Optional built in back-up battery which can working for at least 40 hours
