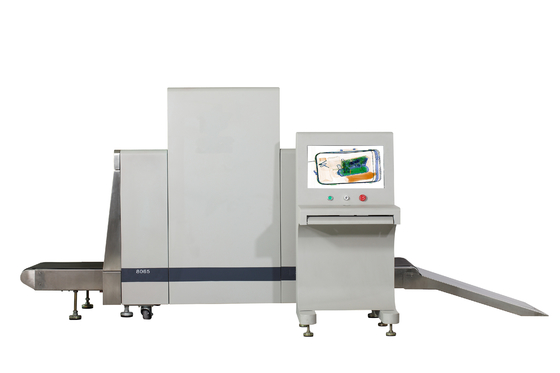

Security X-ray Baggage Scanner For Airport With Tunnel 800mm x 650mm

large.img.alt
small.img.alt

Large Image :  Security X-ray Baggage Scanner For Airport With Tunnel 800mm x 650mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS, ISO 9001:2008
Model Number: VO-8065
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Packaging Details: 1 pcs /2carton
Delivery Time: 2 days after receive payments
Payment Terms: T/T
Supply Ability: 6000pcs/Month
Detailed Product Description
High Light:

x ray baggage scanner

,

baggage x ray machine

Security X-ray Baggage Scanner For Airport With Tunnel 800mm x 650mm











Features:

Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Turn off by a key control: the equipment automatic security close-down, does not need complex many steps

Eagle eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm

X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mA (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods

Sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: L type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real time store any image and process it in operation status

Specifications:

Tunnel size:

800 x 650 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

170 kg

Single inspection dosage

<1.5µgy

Wire resolution

0.1 mm metal line

Steel penetration:

34 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr

Competitive Advantage:

Network interface : Could be connect local area network and support multi terminal check baggage at same times

Simple operation by mouse: without keyboard and work table , control by mouse , save space

Seamless Network Integration

Ergonomic Design

Value and Performance

Adjustable Control Panel

Security X-ray Baggage Scanner For Airport With Tunnel 800mm x 650mm
