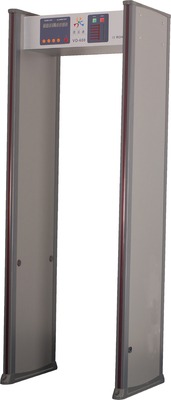

Stable Performance Walk Through Metal Detector Simple Structure Design With 6 Zones

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Stable Performance Walk Through Metal Detector Simple Structure Design With 6 Zones Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC,ROHS,ISO 9001:2008
Model Number: VO-600
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

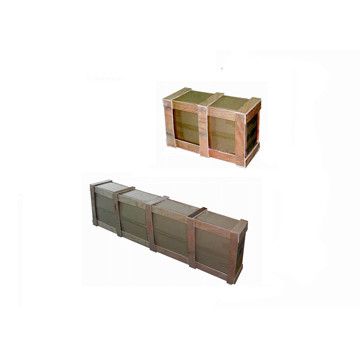

Packaging Details: 1 pcs/ 2carton
Delivery Time: 1-2 days after receive the payments
Payment Terms: T/T & Western Union
Supply Ability: 6000pcs/ Month
Detailed Product Description
High Light:

door metal detector

,

walk through metal detector gate



Stable Performance Walk Through Metal Detector Simple Structure Design With 6 Zones





Competitive Advantage:

Simple structure design and stable performance

6 zones

DSP controlled

Unique intelligent sensitivity adjustment by scanning memory





Features:

Consists of two parts: left-right detecting gate and mainframe, the material used is fire-proof board that is fire-proof, wear-resisting and high-strength

There are 6 detecting areas spreading evenly over the left-right detecting gate board from its top to bottom (it is called a 6 positions detecting)

On the sides of left-right detecting gate board, there are aluminum alloy strips for protection, even on it top and bottom, there are some protecting and fixing wares

The control circuit is highly integrated, which is especially stable in performance and long lifespan

Eight work frequency spots are set up in an array;standard distance to assemble the gates is 50cm

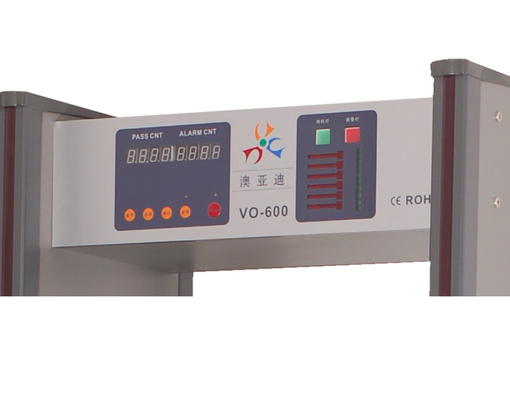

Information will be marked down on the front panel such as number of persons passed-by, times of alarm, strength of interfering signals and more

Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity, it can be adjusted in 100° within its scope, it can meet the customer's demand to reject the items such as belt buckle, gold or silver jewelry and more

The product realizes the function to adjust the sensitivity by intelligence, if you want to detect a metal, you can put it at the middle of the gate to scan, and then you finish the adjustment of sensitivity

No harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc and more





Applications:

Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Bar and  so on





Specifications:

Product passage dimensions

2,050 x 750 x 530mm

Product external dimensions

2,200 x 870 x 530mm

Working power

AC: 110V-220V

Working power

30W

Working temperature

-20℃-55℃
