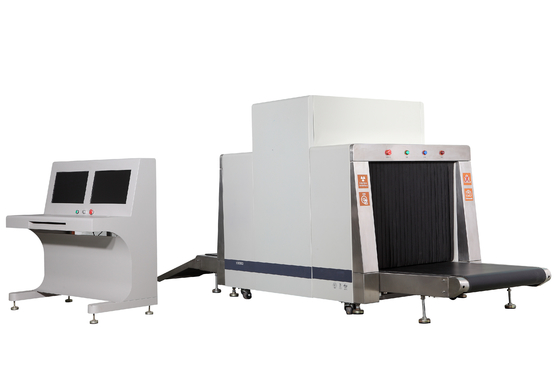

UOUOU VO-10080 X Ray Security Scanner CE With 230kg Conveyor Maximum Load
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | UOUOU X Ray Security Scanner | Model No.: | VO-10080 |
|---|---|---|---|
| Tunnel Size: | 1000(W)×800(H)mm | Conveyor Speed: | 0.22 M/s |
| Conveyor Maximum Load: | 230 Kg | Film Safety: | For ISO 1600 |
| High Light: | x ray scanning machine,luggage x ray machines |
||
UOUOU VO-10080 X Ray Security Scanner CE With 230kg Conveyor Maximum Load
VO-10080 X-ray Baggage Screening Machine with 230kg Conveyor Maximum Load and 0.22m/sec Conveyor Speed
TECHNICAL DATA:
*Especially designed for high way, railway, port, customs, bus station and other publics
*Strict quality control, double test in engineering and producing
*Spare parts guaranteed
*High performance network
*Test Report from Inspection Center of State Security Ministry
*CE certificate
*ISO9001 certificate-German TUV
*ISO14001 certificate
*Radiation safety certificate from Chinese Government
With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm.
Tunnel size: | 1000(W)×800(H)mm |
Equipment size: | 3200(L)*1300(W)*1570(H) |
Conveyor speed: | 0.22 m/s |
Conveyor maximum load: | 230 kg |
Single inspection dosage | <1.5µgy |
Wire resolution | 0.101mm metal line |
Steel penetration: | 34MM armor plate |
Film safety: | for ISO 1600 |
Maximum leakage radiation | <0.05µGY/H |
Weight: | 1100KG |
Orientation: | Vertically Upward |
Tube Current: | 0.4~1.2MA(adjustable) |
Anode Voltage: | 100~160 kV (adjustable) |
Angle: | 60° |
Generator cooling/working periods Sealed oil bath with forced air/100％ | |
Storage Temperature: | -20ºC to 60ºC |
Operating Temperature: | 0ºC to 45ºC |
Relative Humidity: | 20 to 95% non-condensing |
System Power: | 220 VAC (±10%) 50±3HZ |
Power wastage | 1.0 KW (Max) |
Noise: | <60DB |
X-RAY GENERATOR:
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 kV (adjustable)
Angle: 60°
Generator cooling/working periods Sealed oil bath with forced air/100％
