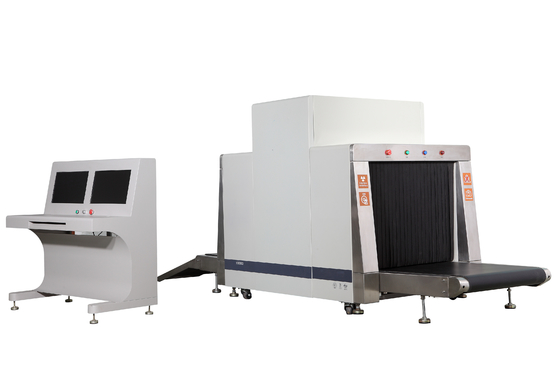

VO-10080, digital X-ray Baggage Screening Machine, x-ray screening baggage inspection machine

large.img.alt
small.img.alt

Large Image :  VO-10080, digital X-ray Baggage Screening Machine, x-ray screening baggage inspection machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS
Model Number: VO-10080
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2 - 3days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
High Light:

digital x ray machine

,

baggage x ray machine

VO-10080, digital X-ray Baggage Screening Machine,  x-ray screening baggage inspection machine





VO-10080, X-ray Baggage Screening Machine with 200kg Conveyor Maximum Load and 0.22m/sec Conveyor Speed



Specifications:



Tunnel size:

1,000 x 800 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

200kg

Single inspection dosage

<1.5µgy

Wire resolution

0.1 mm metal line

Steel penetration:

32 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr





Competitive Advantage:



Alarm by sounds & light : Alarm by sounds and light when conform to condition



Image monitoring for user-friendly: the monitor use fold , rotary system, operators adjusts the monitor position willfully according to own need , reduces wearily





Description:



X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12 bits

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real-time store any image and process it in operation status

Operating environment:

Storage temperature: -20 to 60°C

Operating temperature: 0 to 45°C

Relative humidity: 20 to 95% non-condensing

System power: 220V AC (±10%) 50 ± 3Hz

Power wastage: 1.5kW (maximum)

Noise: <65dB

Packing: 1pc/2 carton, 8.8cbm

Gross weight: 1,600kg
