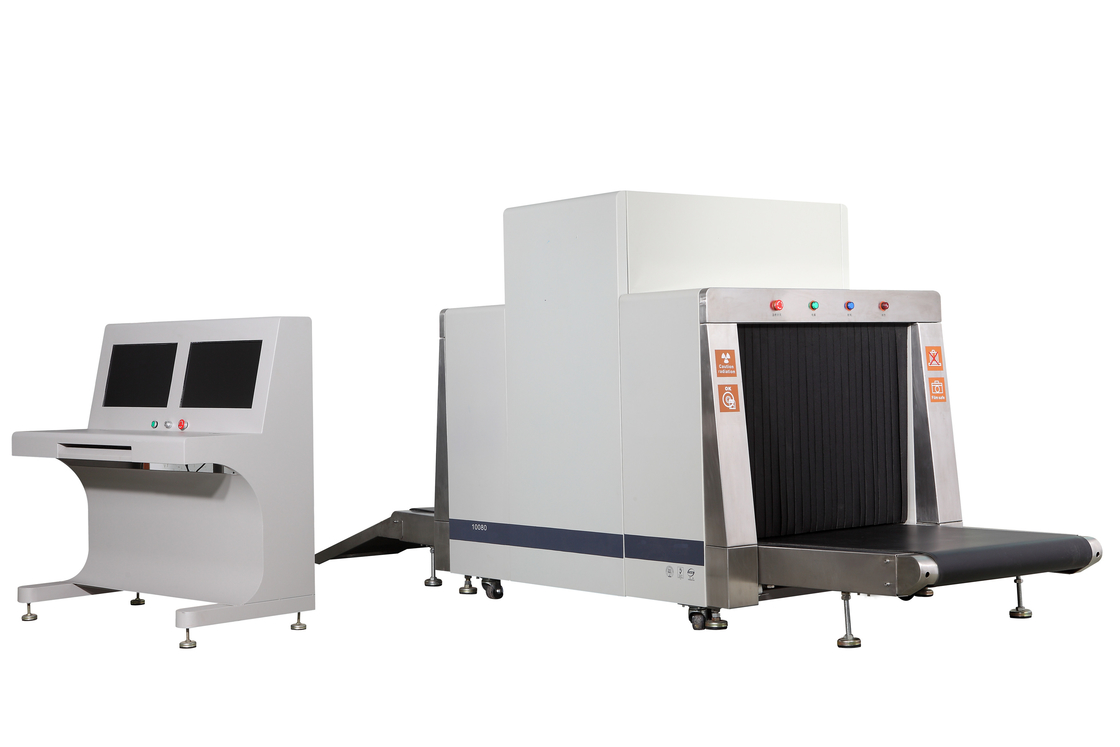

VO-10080 X-ray Security Scanner with 230kg Conveyor Maximum Load

large.img.alt
small.img.alt small.img.alt

Large Image :  VO-10080 X-ray Security Scanner with 230kg Conveyor Maximum Load Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, ISO 9001:2008
Model Number: VO-10080
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Delivery Time: 1-2 days after receive payments
Payment Terms: T/T and Western Union
Supply Ability: 500 pcs/ Month
Detailed Product Description
Nickname: X-ray Baggage Screening Machine Anode Voltage: 100kV / 160kV
Tube Current: 0.4mAh To 1.2mAh Noise: <60DB , <65dB
Properties: High Performance Network
High Light:

baggage scanner machine

,

x ray scanning machine

VO-10080 X-ray Security Scanner with 230kg Conveyor Maximum Load





TECHNICAL DATA:



*Especially designed for high way, railway, port, customs, bus station and other publics

*Strict quality control, double test in engineering and producing

*Spare parts guaranteed

*High performance network

*Test Report from Inspection Center of State Security Ministry

*CE certificate

*ISO9001 certificate-German TUV

*ISO14001 certificate

*Radiation safety certificate from Chinese Government

With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm.



Tunnel size:

1000(W)×800(H)mm

Equipment size:

3200(L)*1300(W)*1570(H)

Conveyor speed:

0.22 m/s

Conveyor maximum load:

230 kg

Single inspection dosage

<1.5µgy

Wire resolution

0.101mm metal line

Steel penetration:

34MM armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.05µGY/H

Weight:

1100KG

Orientation:

Vertically Upward

Tube Current:

0.4~1.2MA(adjustable)

Anode Voltage:

100~160 kV (adjustable)

Angle:

60°

Generator cooling/working periods Sealed oil bath with forced air/100%

Storage Temperature:

-20ºC to 60ºC

Operating Temperature:

0ºC to 45ºC

Relative Humidity:

20 to 95% non-condensing

System Power:

220 VAC (±10%) 50±3HZ

Power wastage

1.0 KW (Max)

Noise:

<60DB





X-ray generator:



Orientation: vertically upward

Tube current: 0.4 to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12 bits

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real-time store any image and process it in operation status

Operating environment:

Storage temperature: -20 to 60°C

Operating temperature: 0 to 45°C

Relative humidity: 20 to 95% non-condensing

System power: 220V AC (±10%) 50 ± 3Hz

Power wastage: 1.5kW (maximum)

Noise: <65dB

Packing: 1pc/2 carton, 8.8cbm

Gross weight: 1,600kg





VO-10080 X-ray Security Scanner with 230kg Conveyor Maximum Load
