VO-2400 Led Digital Door Metal Detector with 24 Zones , DSP / Microprocessor Control

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  VO-2400 Led Digital Door Metal Detector with 24 Zones , DSP / Microprocessor Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS, ISO 9001:2008
Model Number: VO-2400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1set/ 2 carton
Delivery Time: within 3 days after confirming your payment.
Payment Terms: T/T and western union
Supply Ability: 6000pcs/ M
Detailed Product Description
Model Number: VO-2400 Display: LCD Display
Type: Metal Detector Passage Dimensions: 2,000 X 720 X 280mm
High Light:

door frame metal detector

,

doorway metal detectors

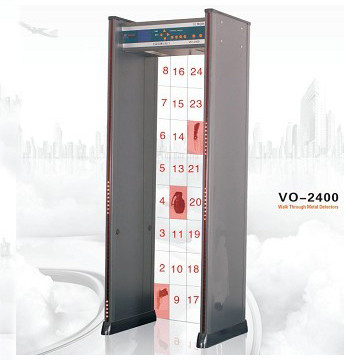

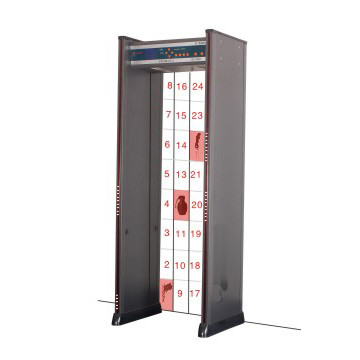

VO-2400 Led Digital Door Metal Detector with 24 Zones , DSP / Microprocessor Control





VO-2400 Metal Detector with 24 Zones, DSP/Microprocessor Control, and Built-in Back-up Battery



Features:

Consists of two parts: left-right detecting gate and mainframe, the mainframe is using a very friendly design such as waterproof and anti-visual blind designs

There are 24 detecting areas spreading evenly over the left, middle and right detecting gate boards respectively from its top to bottom with built-in super shining LED indicating lights (called a 24 positions LED display detecting)

Independent detecting in left, middle and right regions: the LED indicating lights in left, middle and right regions will display independently, the maximum sensitivity will detect 1-yuan coin

Information will be marked down on the super-large LCD front panel such as number of persons passed-by, times of alarm, strength of interfering signals, remote-controlled receiver and more

The control circuit, collecting circuit and calculation circuit are highly integrated, which are especially stable in performance, strong in anti-interference, exact in detecting and free from mistakes in reporting

The special remote controller is prepared to adjust all functions,power on or off the device easily

When connecting with power, the device will automatically turn on, diagnose and adjust

Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall

sensitivity, it can be adjusted in 100° within its scope, it can meet the customer's demand to reject the items such as belt buckle, gold or silver jewelry and more

Has the function of password protection

Has the function of recover systematic parameters by one-key

Has the function of 3-grade audio tones adjustment, adapting to different usage environment

No harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc and more

Passage dimensions:

2,000 x 720 x 280mm

External dimensions:

2,230 x 970 x 345mm

Working power:

AC 110 to 220V, 30W

Working temperature:

-20 to 55°C
