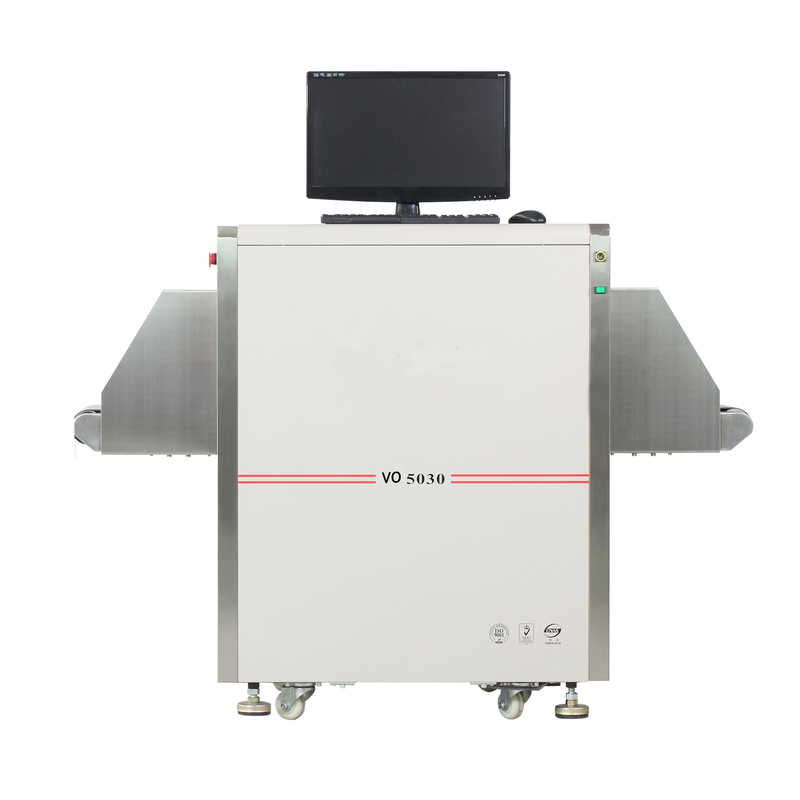

X-ray Baggage inspection Machine


Large Image :  X-ray Baggage inspection Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS
Model Number: VO-5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2 - 3days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
High Light:

x ray baggage scanner


baggage x ray machine

VO-5030A, Airport checking Baggage Inspection Scanner X-ray Machine, X-ray Baggage Machine



 VO-5030A, X-ray Baggage Screening Machine with Penetrating Power, Color Imaging and Low Noise Drum




Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Image monitoring for user-friendly: the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4  to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit

Edge enhancement: object contour edge is more distinct

Super image enhancement:image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement





Tunnel size:

500 x 300 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

20 kg

Single inspection dosage


Wire resolution

0.1 mm metal line

Steel penetration:

32 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr



Competitive Advantage:


Eagle-eye : could be expediently observing enlargement area
