X-ray Baggage Machine with 32mm Armor Plate Steel Penetration VO-5030C

I'm Online Chat Now
Certification
Good quality Hand Held Metal Detector for sales
Good quality Hand Held Metal Detector for sales
Good Supplier with fast delivery time , help us with our business .

—— Ulrich Flock--Germany

Our client very happy so far about their metal detector model

—— Carl --South Africa

we used the hand held metal detector model GP-3003B1,and it with high sensitivity and stable performance.

—— Mark Dolan--Dubai

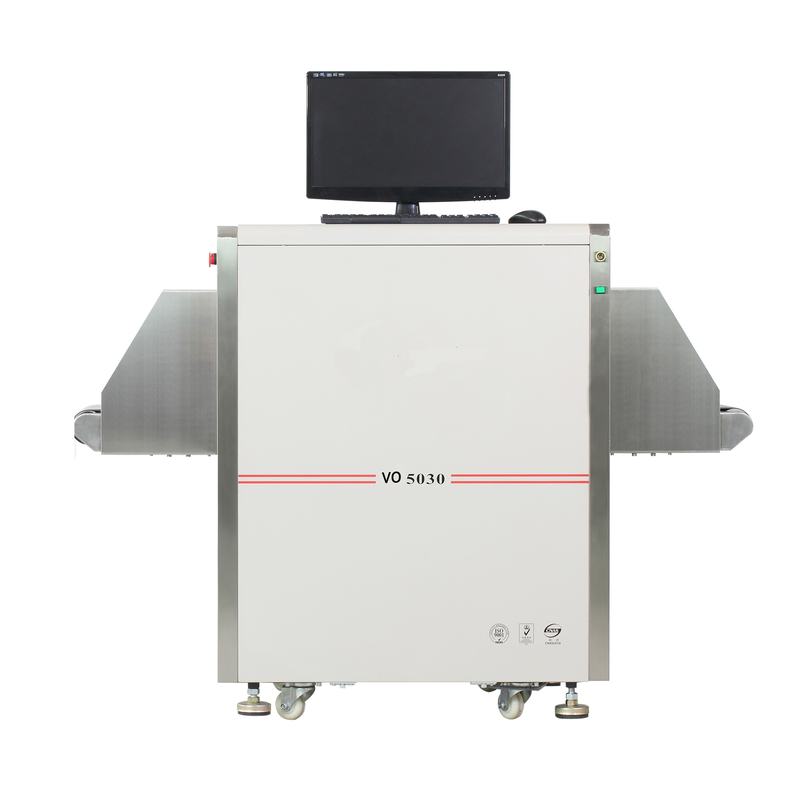

X-ray Baggage Machine with 32mm Armor Plate Steel Penetration VO-5030C

large.img.alt
small.img.alt small.img.alt

Large Image :  X-ray Baggage Machine with 32mm Armor Plate Steel Penetration VO-5030C Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE , FCC , ROHS , ISO 9001:2008
Model Number: VO-5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 1PCS/CARTON/2.6CBM , 180CM*95CM*150CM
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
High Light:

digital x ray machine

,

baggage x ray machine

VO-5030C X-ray Baggage Machine with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration

Feature:

Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Image monitoring for user-friendly: the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4  to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit

Edge enhancement: object contour edge is more distinct

Super image enhancement:image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement

Specifications:



Tunnel size:

500 x 300 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

20 kg

Single inspection dosage

<1.5µgy

Wire resolution

0.1 mm metal line

Steel penetration:

32 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr

 Competitive Advantage:

 Safety ray : Transmit ray under automatic control ,avoids the miss

 Eagle-eye : could be expediently observing enlargement area
