High Light: | x ray baggage scanner,digital x ray machine |
---|

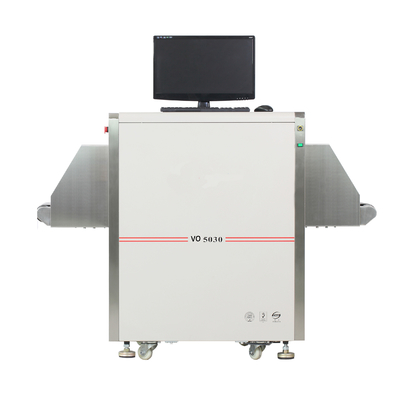

VO-5030A, Airport checking Baggage Inspection Scanner X-ray Machine, Digital X-ray Baggage Machine
VO-5030A, X-ray Baggage Screening Machine with Penetrating Power, Color Imaging and Low Noise Drum
Feature:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface: could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Image monitoring for user-friendly: the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily
Simple operation by mouse: without keyboard and work table, control by mouse, save space
Turn off by a key control: turn off the machine only need one step, revolves the key
The equipment automatic security close-down, does not need complex many steps, is simpler
Eagle-eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
X-ray generator:
Orientation: vertically upward
Tube current: 0.4 to 1.2mAh (adjustable)
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods sealed oil bath with forced air/100%
Image performance system:
X-ray sensor: l type photo-diode array detector, 12bit
Monitor: high resolution 17-inch color LCD display
Color quality: 24-bit
Edge enhancement: object contour edge is more distinct
Super image enhancement:image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly
Magnifier: function of partial enlargement
Specifications:
Tunnel size: |
500 x 300 mm |
Conveyor speed: |
0.22 m/s |
Conveyor maximum load: |
20 kg |
Single inspection dosage |
<1.5µgy |
Wire resolution |
0.1 mm metal line |
Steel penetration: |
32 mm armor plate |
Film safety: |
for ISO 1600 |
Maximum leakage radiation |
<0.3 µgy /hr |
Competitive Advantage:
Eagle-eye : could be expediently observing enlargement area
