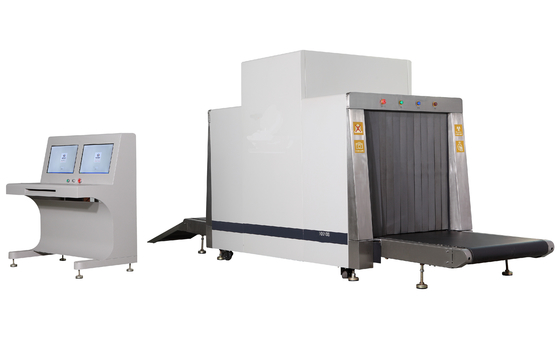

VO-100100 X-ray Baggage Machine with 1000 x 1000mm Tunnel Size and 230kg Conveyor Maximum Load
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Tunnel Size: | 1000(W)×1000(H)mm | Equipment Size: | 3460(L)*1280(W)*1870(H) Mm |
|---|---|---|---|
| Conveyor Speed: | 0.22 M/s | ||
| High Light: | x ray baggage scanner,baggage x ray machine |
||
VO-100100 X-ray Baggage Machine with 1000 x 1000mm Tunnel Size and 230kg Conveyor Maximum Load
|
Tunnel size: |
1000(W)×1000(H)mm |
|
Equipment size: |
3460(L)*1280(W)*1870(H) mm |
|
Conveyor speed: |
0.22 m/s |
|
Conveyor maximum load: |
230 kg |
|
Single inspection dosage |
<1.5µgy |
|
Wire resolution |
0.101mm metal line |
|
Steel penetration: |
34MM armor plate |
|
Film safety: |
for ISO 1600 |
|
Maximum leakage radiation |
<0.1µGY/H |
|
Weight: |
1200KG |
|
Orientation: |
Vertically Upward |
|
Tube Current: |
0.4~1.2MA(adjustable) |
|
Anode Voltage: |
100~160 kV (adjustable) |
|
Angle: |
60° |
|
Generator cooling/working periods Sealed oil bath with forced air/100％ |
|
|
Storage Temperature: |
-20ºC to 60ºC |
|
Operating Temperature: |
0ºC to 45ºC |
|
Relative Humidity: |
20 to 95% non-condensing |
|
System Power: |
220 VAC (±10%) 50±3HZ |
|
Power wastage |
1.0 KW (Max) |
|
Noise: |
<64DB |
Features:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface: could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Turn off by a key control: the equipment automatic security close-down, does not need complex many steps
Eagle eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
