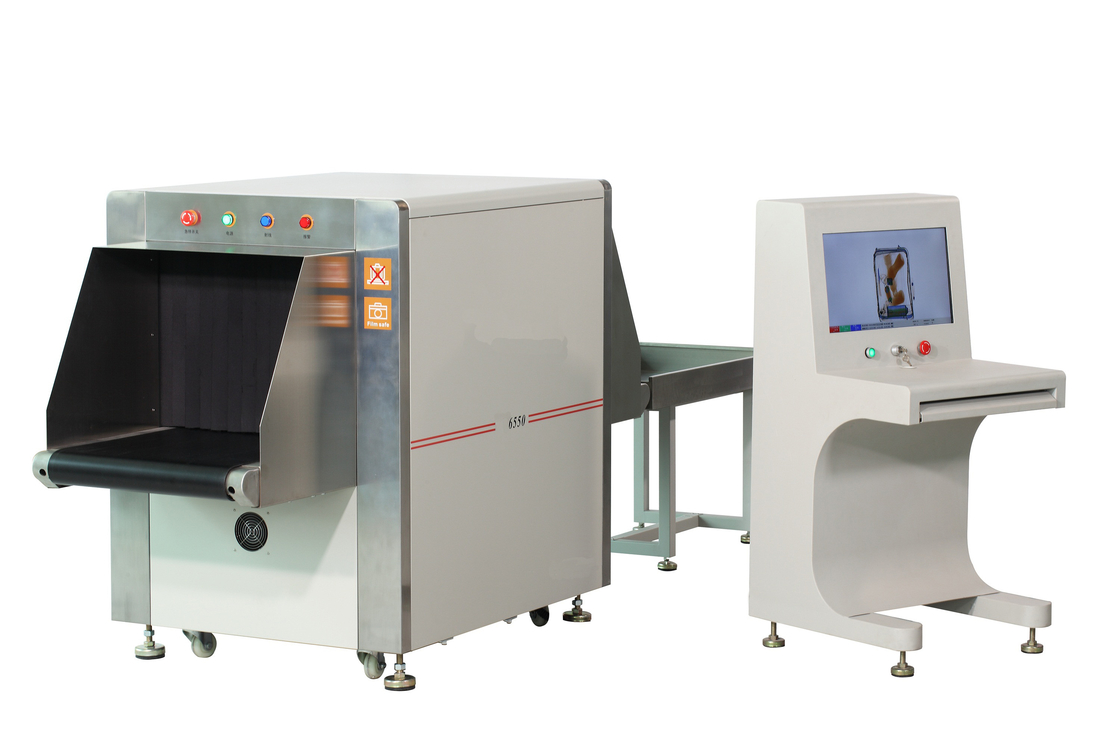

220 VAC X-ray Baggage Machine VO-6550 For Conference Center

small.img.alt small.img.alt small.img.alt

Large Image :  220 VAC X-ray Baggage Machine VO-6550 For Conference Center Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, ISO 9001:2008
Model Number: VO-6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Delivery Time: 1-2 days after receive payments
Payment Terms: T/T and Western Union
Supply Ability: 500pcs / Month
Detailed Product Description
Model Number: VO-6550 Properties: Portable
Application: Baggage, Deposit,Hotel,Prison Anode Voltage: 100kV - 160kV
Tube Current: 0.4mAh To 1.2mAh
High Light:

digital x ray machine


baggage x ray machine

220 VAC X-ray Baggage Machine VO-6550 For Conference Center



Compact Design


Cost Effective

designed for rapid relocation and can be wheeled through narrow doorways, making it an excellent system for schools, hotels, convention centers and event-based security environments


Tunnel size:


Equipment size:


Conveyor speed:

0.22 m/s

Conveyor maximum load:

170 kg

Single inspection dosage


Wire resolution

0.0787mm metal line

Steel penetration:

38MM armor plate

Film safety:

for ISO 1600

Maximum leakage radiation





Vertically Upward

Tube Current:


Anode Voltage:

100~160 kV (adjustable)



Generator cooling/working periods Sealed oil bath with forced air/100%

Storage Temperature:

-20ºC to 60ºC

Operating Temperature:

0ºC to 45ºC

Relative Humidity:

20 to 95% non-condensing

System Power:

220 VAC (±10%) 50±3HZ

Power wastage

1.0 KW (Max)







*Especially designed for tour spot, gymnasium, conference center, exhibition, baggage, deposit, shopping mall, Hotel, Factory and other important locations.

*Strict quality control, double test in engineering and producing

*Spare parts guaranteed

*High performance network

*Test Report from Inspection Center of State Security Ministry

*CE certificate

*ISO9001 certificate-German TUV

*ISO14001 certificate

*Radiation safety certificate from Chinese Government

*With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm.





Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance



X-ray generator:


Orientation: vertically upward

Tube current: 0.4 to 1.2mA (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods: sealed oil bath with forced air/100

Operating environment:

Storage temperature: -20 to 60°C

Operating temperature: 0 to 45°C

Relative humidity: 20 to 95% non-condensing

System power: 220V AC (±10%) 50 ± 3Hz

Power wastage: 1.0kW (maximum)

Noise: <65dB

Packing: 1pc/carton, 3.5cbm

Carton size: 205 x 95 x 135cm

Carton size (with plank/shelf): 125 x 75 x 85cm

Weight/carton: 750 kg



220 VAC X-ray Baggage Machine VO-6550 For Conference Center
