High Light: | x ray baggage scanner,digital x ray machine |
---|

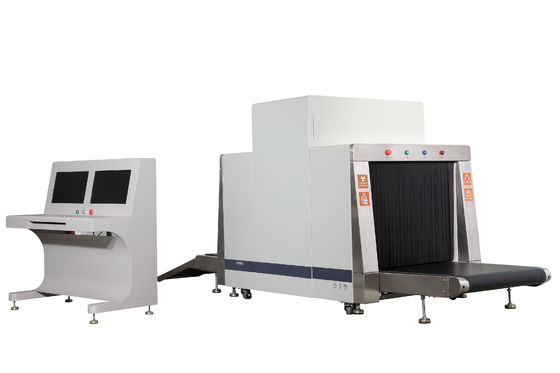

High Resolution X-ray Baggage Machine 0.22m/sec Conveyor Speed With 230kg Conveyor Maximum Load
Competitive Advantage:
Alarm by sounds & light : Alarm by sounds and light when conform to condition
Image monitoring for user-friendly: the monitor use fold , rotary system, operators adjusts the monitor position willfully according to own need , reduces wearily
Description:
X-ray generator:
Orientation: vertically upward
Tube current: 0.4 to 1.2mAh (adjustable)
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods sealed oil bath with forced air/100%
Image performance system:
X-ray sensor: l type photo-diode array detector, 12 bits
Monitor: high resolution 17-inch color LCD display
Color quality: 24-bit real colors
Edge enhancement: object contour edge is more distinct
Super image enhancement: image detail is more distinct
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly
Low penetrate strength display: increase contrast of low absorptivity mass (easy to penetrate) to display it distinctly
Magnifier: function of partial enlargement
Brightening/dimming: increase brightness of image/decrease brightness of image
Image recurrence: display previous twenty images and process any one of them
Image restoration: restore image to initial status at the time of stopping conveyor
Image storing: real-time store any image and process it in operation status
Operating environment:
Storage temperature: -20 to 60°C
Operating temperature: 0 to 45°C
Relative humidity: 20 to 95% non-condensing
System power: 220V AC (±10%) 50 ± 3Hz
Power wastage: 1.5kW (maximum)
Noise: <65dB
Packing: 1pc/2 carton, 8.8cbm
Gross weight: 1,600kg
Applications:
Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,
Prisons,
Hotels,
Schools ,
Convention centers,
Security checkpoints,
Special events location
Specifications:
Tunnel size: | 1,000 x 800 mm |
Conveyor speed: | 0.22 m/s |
Conveyor maximum load: | 230kg |
Single inspection dosage | <1.5µgy |
Wire resolution | 0.1 mm metal line |
Steel penetration: | 34 mm armor plate |
Film safety: | for ISO 1600 |
Maximum leakage radiation | <0.3 µgy /hr |
