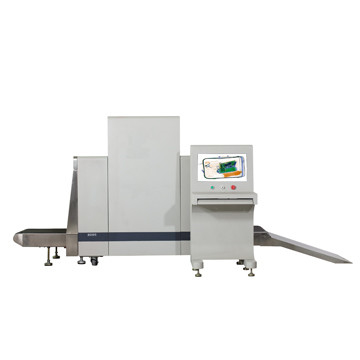

High Resolution X-ray Baggage Machine With 800 x 650mm Tunnel Size

High Resolution X-ray Baggage Machine With 800 x 650mm Tunnel Size

Features:

Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Turn off by a key control: the equipment automatic security close-down, does not need complex many steps

Eagle eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm

X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mA (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods

Sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: L type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real time store any image and process it in operation statu
