Low Noise VO-8065 X-ray Baggage Machine Without Keyboard
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number: | VO-8065 | Properties: | Portable |
|---|---|---|---|
| Application: | Baggage, Deposit，Hotel，Prison | Anode Voltage: | 100kV - 160kV |
| Color Quality: | 24-bit Colors | ||
| High Light: | digital x ray machine,baggage x ray machine |
||

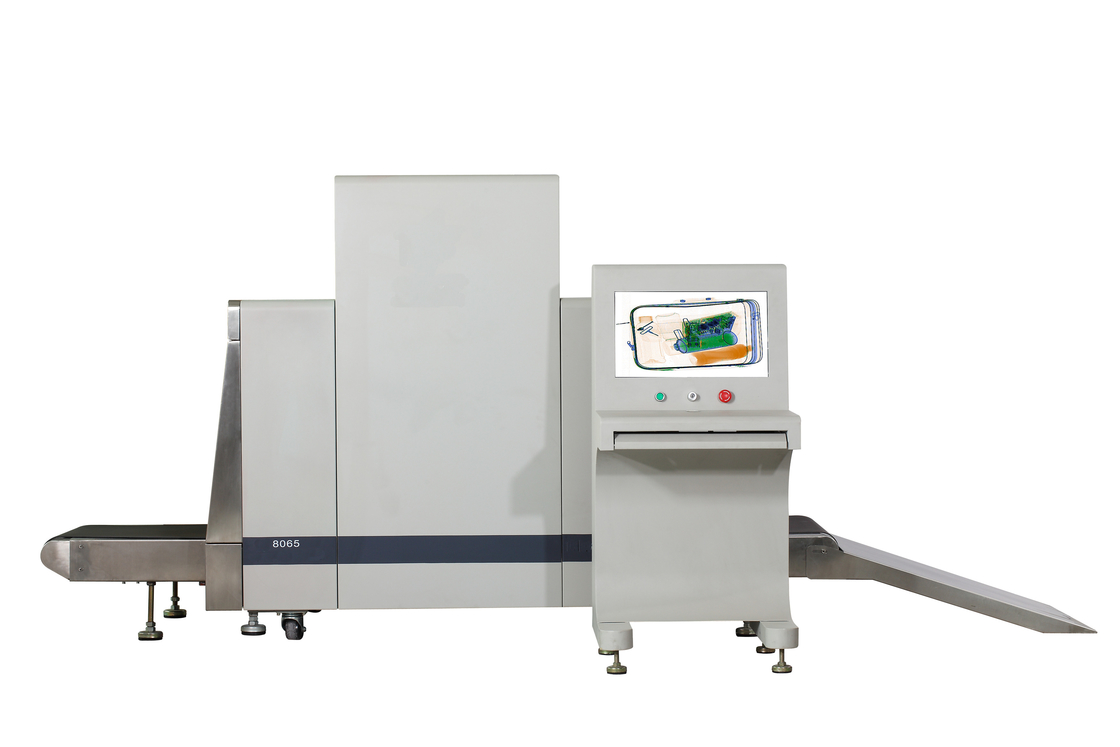

Low Noise VO-8065 X-ray Baggage Machine Without Keyboard
Network interface : Could be connect local area network and support multi terminal check baggage at same times
Simple operation by mouse: without keyboard and work table , control by mouse , save space
|
Tunnel size: |
800(W)×650(H)mm |
|
Equipment size: |
2630(L)*1050(W)*1520(H) |
|
Conveyor speed: |
0.22 m/s |
|
Conveyor maximum load: |
170 kg |
|
Single inspection dosage |
<1.5µgy |
|
Wire resolution |
0.101mm metal line |
|
Steel penetration: |
34MM armor plate |
|
Film safety: |
for ISO 1600 |
|
Maximum leakage radiation |
<0.05µGY/H |
|
Weight: |
900KG |
|
Orientation: |
Vertically Upward |
|
Tube Current: |
0.4~1.2MA(adjustable) |
|
Anode Voltage: |
100~160 kV (adjustable) |
|
Angle: |
60° |
|
Generator cooling/working periods Sealed oil bath with forced air/100％ |
|
|
Storage Temperature: |
-20ºC to 60ºC |
|
Operating Temperature: |
0ºC to 45ºC |
|
Relative Humidity: |
20 to 95% non-condensing |
|
System Power: |
220 VAC (±10%) 50±3HZ |
|
Power wastage |
1.0 KW (Max) |
|
Noise: |
<60DB |
TECHNICAL DATA:
*Especially designed for high way, railway, port, customs, bus station and other publics
*Strict quality control, double test in engineering and producing
*Spare parts guaranteed
*High performance network
*Test Report from Inspection Center of State Security Ministry
*CE certificate
*ISO9001 certificate-German TUV
*ISO14001 certificate
*Radiation safety certificate from Chinese Government
*With Threat Image Projection (TIP): which can record the dangerous items’ information ,and when detect the dangerous item, it will have the voice alarm.
Features:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface: could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Turn off by a key control: the equipment automatic security close-down, does not need complex many steps
Eagle eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
