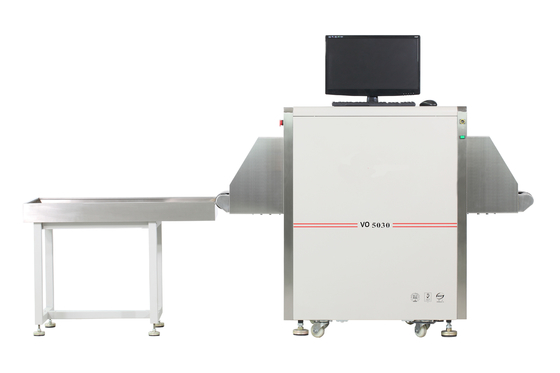

UOUOU Mobile X-ray Baggage Machine with 500 x 300mm Tunnel Size

large.img.alt
small.img.alt

Large Image :  UOUOU Mobile X-ray Baggage Machine with 500 x 300mm Tunnel Size Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE,ISO 9001:2008
Model Number: VO-5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 1-2 days after receive payments
Payment Terms: T/T and Wester Union
Supply Ability: 6000pcs/M
Detailed Product Description
Product Name: Mobile X-ray Baggage Machine Tunnel Size: 500(W)×300(H)mm
Conveyor Speed: 0.22 M/s Conveyor Maximum Load: 120 Kg
Wire Resolution: 0.0787mm Metal Line Film Safety: For ISO 1600
High Light:

x ray baggage scanner

,

baggage x ray machine

UOUOU Mobile X-ray Baggage Machine with 500 x 300mm Tunnel Size





VO-5030C X-ray Luggage Scanner with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration





TECHNICAL DATA:



*Especially designed for tour spot, gymnasium, conference center, exhibition, baggage, deposit, shopping mall, Hotel , Court, Prison and other important locations.

*Strict quality control, double test in engineering and producing

*Spare parts guaranteed

*High performance network

*Test Report from Inspection Center of State Security Ministry

*CE certificate

*ISO9001 certificate-German TUV

*ISO14001 certificate

*Radiation safety certificate from Chinese Goverment





Tunnel size:

500(W)×300(H)mm

Equipment size:

1650(L)×720(w)×1190(h)mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

120 kg

Single inspection dosage

<1.5µgy

Wire resolution

0.0787mm metal line

Steel penetration:

38MM armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.05µGY/H

Weight:

300KG

Orientation:

Vertically Upward

Tube Current:

0.4~1.2MA(adjustable)

Anode Voltage:

100~160 kV (adjustable)

Angle:

60°

Generator cooling/working periods Sealed oil bath with forced air/100%

Storage Temperature:

-20ºC to 60ºC

Operating Temperature:

0ºC to 45ºC

Relative Humidity:

20 to 95% non-condensing

System Power:

220 VAC (±10%) 50±3HZ

Power wastage

1.0 KW (Max)

Noise:

<60DB





X-ray generator:



Orientation: vertically upward

Tube current: 0.4  to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement





UOUOU Mobile X-ray Baggage Machine with 500 x 300mm Tunnel Size
