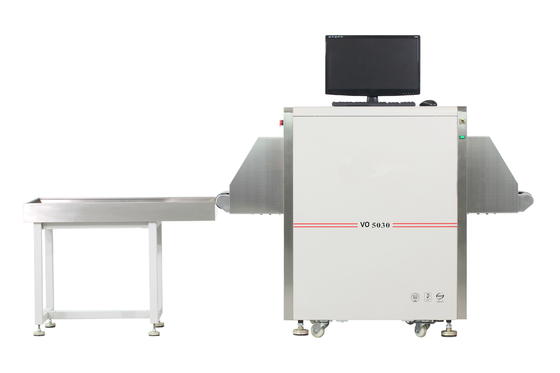

VO-5030C X-ray Baggage Machine with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration

large.img.alt
small.img.alt

Large Image :  VO-5030C X-ray Baggage Machine with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, ISO 9001:2008
Model Number: VO-5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: 1-2 days
Detailed Product Description
High Light:

x ray baggage scanner

,

digital x ray machine

VO-5030C X-ray Baggage Machine with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration

Feature:

Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Image monitoring for user-friendly: the monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4  to 1.2mAh (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: l type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24-bit

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement

Technical data:



Tunnel size:

500 x 300mm

Conveyor speed:

0.22m/s

Conveyor maximum load:

20kg

Single inspection dosage

<1.5µgy

Wire resolution:

0.1mm metal line

Steel penetration:

32mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3µgy/hr

VO-5030C X-ray Baggage Machine with 500 x 300mm Tunnel and 32mm Armor Plate Steel Penetration
