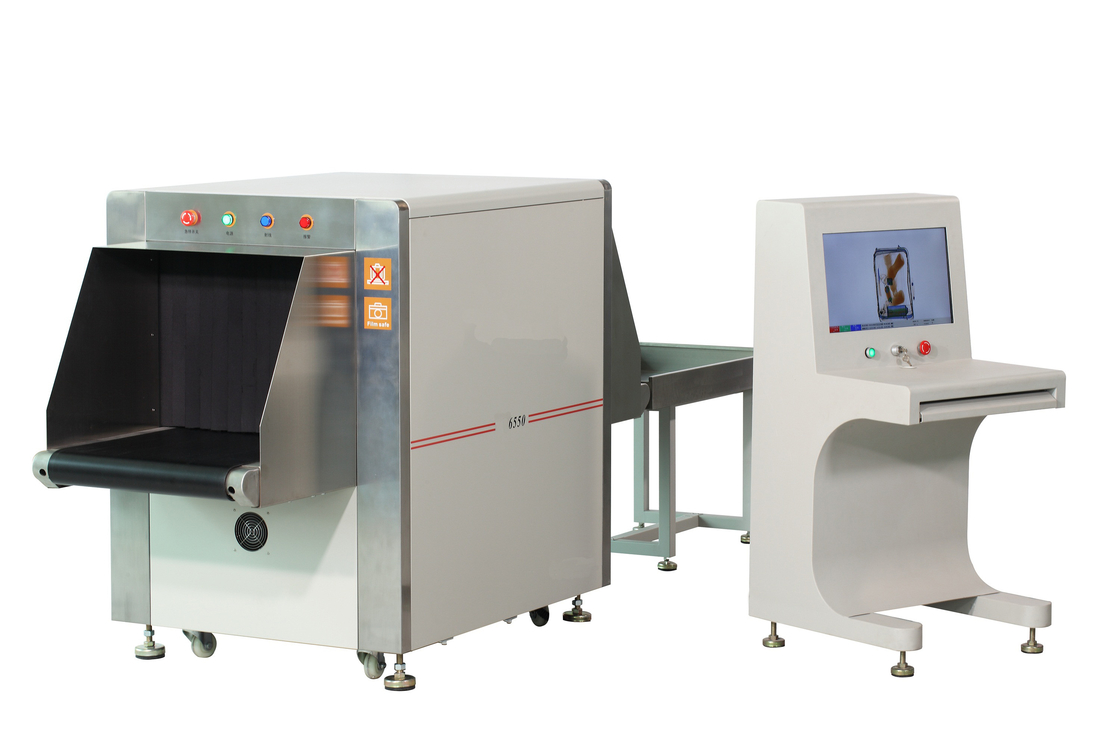

VO-6550, digital Security X-ray Baggage Machine, x ray security scanner / machines

large.img.alt
small.img.alt

Large Image :  VO-6550, digital Security X-ray Baggage Machine, x ray security scanner / machines Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS
Model Number: VO-6550
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2 - 3days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
High Light:

x ray baggage scanner

,

digital x ray machine

VO-6550, digital Security X-ray Baggage Machine, x ray security scanner / machines





VO-6550, X-ray Luggage Scanner Machine with 170kg Conveyor Maximum Load and 100 to 160kV Anode Volta



Specifications:



Tunnel size:

650 x 500 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

170kg

Single inspection dosage

<1.5µgy

Wire resolution

0.1 mm metal line

Steel penetration:

32 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr





Competitive Advantage:



Network interface : Could be connect local area network and support multi terminal check baggage at same times





Feature:



Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Simple operation by mouse: without keyboard and work table, control by mouse, save space

Turn off by a key control: turn off the machine only need one step, revolves the key

The equipment automatic security close-down, does not need complex many steps, is simpler

Eagle-eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mA (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods: sealed oil bath with forced air/100

Operating environment:

Storage temperature: -20 to 60°C

Operating temperature: 0 to 45°C

Relative humidity: 20 to 95% non-condensing

System power: 220V AC (±10%) 50 ± 3Hz

Power wastage: 1.0kW (maximum)

Noise: <65dB

Packing: 1pc/carton, 3.5cbm

Carton size: 205 x 95 x 135cm

Carton size (with plank/shelf): 125 x 75 x 85cm

Weight/carton: 750 kg
