Product Details:
Payment & Shipping Terms:
|
High Light: | digital x ray machine,baggage x ray machine |
---|

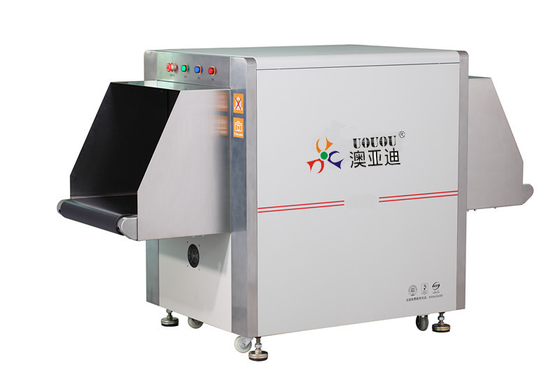

VO-6550, Super sensitivity X-ray Baggage Machine, Advanced Baggage Inspection X-ray Machine
VO-6550, X-ray Luggage Scanner Machine with 170kg Conveyor Maximum Load and 100 to 160kV Anode Volta
Feature:
Alarm by sounds and light: alarm by sounds and light when conform to condition
Network interface could be connect local area network and support multi-terminal check baggage at same times
Safety ray: transmit ray under automatic control, avoids the miss
Simple operation by mouse: without keyboard and work table, control by mouse, save space
Turn off by a key control: turn off the machine only need one step, revolves the key
The equipment automatic security close-down, does not need complex many steps, is simpler
Eagle-eye: could be expediently observing enlargement area
Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance
X-ray generator:
Orientation: vertically upward
Tube current: 0.4 to 1.2mA (adjustable)
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods: sealed oil bath with forced air/100
Operating environment:
Storage temperature: -20 to 60°C
Operating temperature: 0 to 45°C
Relative humidity: 20 to 95% non-condensing
System power: 220V AC (±10%) 50 ± 3Hz
Power wastage: 1.0kW (maximum)
Noise: <65dB
Packing: 1pc/carton, 3.5cbm
Carton size: 205 x 95 x 135cm
Carton size (with plank/shelf): 125 x 75 x 85cm
Weight/carton: 750 kg
Specifications:
Tunnel size: |
650 x 500 mm |
Conveyor speed: |
0.22 m/s |
Conveyor maximum load: |
170kg |
Single inspection dosage |
<1.5µgy |
Wire resolution |
0.1 mm metal line |
Steel penetration: |
32 mm armor plate |
Film safety: |
for ISO 1600 |
Maximum leakage radiation |
<0.3 µgy /hr |
Competitive Advantage:
Network interface : Could be connect local area network and support multi terminal check baggage at same times
