VO-8065 X-ray Baggage Machine, Luggage Screening / Inspection Machine for Security Check

I'm Online Chat Now
Certification
Good quality Hand Held Metal Detector for sales
Good quality Hand Held Metal Detector for sales
Good Supplier with fast delivery time , help us with our business .

—— Ulrich Flock--Germany

Our client very happy so far about their metal detector model

—— Carl --South Africa

we used the hand held metal detector model GP-3003B1,and it with high sensitivity and stable performance.

—— Mark Dolan--Dubai

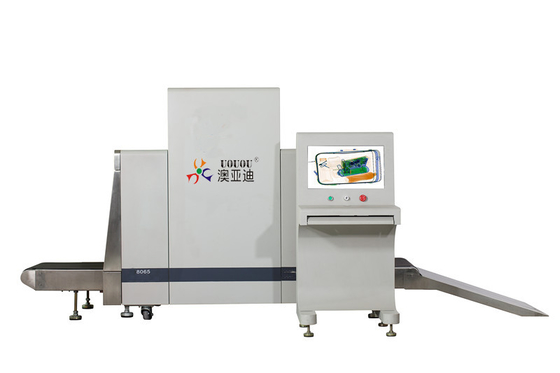

VO-8065 X-ray Baggage Machine, Luggage Screening / Inspection Machine for Security Check

large.img.alt
small.img.alt

Large Image :  VO-8065 X-ray Baggage Machine, Luggage Screening / Inspection Machine for Security Check Get Best Price

Product Details:
Place of Origin: China
Brand Name: UOUOU
Certification: CE, FCC, ROHS
Model Number: VO-8065
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 2 - 3days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
Tunnel Size: 800 X 650 Mm Conveyor Speed: 0.22 M/s
Conveyor Maximum Load: 170 Kg
High Light:

x ray baggage scanner

,

baggage x ray machine

VO-8065 X-ray Baggage Machine, Luggage Screening / Inspection Machine for Security Check





 Features:



Alarm by sounds and light: alarm by sounds and light when conform to condition

Network interface: could be connect local area network and support multi-terminal check baggage at same times

Safety ray: transmit ray under automatic control, avoids the miss

Turn off by a key control: the equipment automatic security close-down, does not need complex many steps

Eagle eye: could be expediently observing enlargement area

Estimate malfunction by self: automatic estimate malfunction and prompt message, helpful for the maintenance

X-ray generator:

Orientation: vertically upward

Tube current: 0.4 to 1.2mA (adjustable)

Anode voltage: 100 to 160kV (adjustable)

Angle: 80°

Generator cooling/working periods

Sealed oil bath with forced air/100%

Image performance system:

X-ray sensor: L type photo-diode array detector, 12bit

Monitor: high resolution 17-inch color LCD display

Color quality: 24 bit real colors

Edge enhancement: object contour edge is more distinct

Super image enhancement: image detail is more distinct

High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorptivity mass distinctly

Low penetrate strength display: increase contrast of low absorptivity mass to display it distinctly

Magnifier: function of partial enlargement

Brightening/dimming: increase brightness of image/decrease brightness of image

Image recurrence: display previous twenty images and process any one of them

Image restoration: restore image to initial status at the time of stopping conveyor

Image storing: real time store any image and process it in operation status



VO-8065, X-ray Luggage Scanner with 800 x 650mm Tunnel Size and 0.22m/Second Conveyor Speed



Specifications:



Tunnel size:

800 x 650 mm

Conveyor speed:

0.22 m/s

Conveyor maximum load:

170 kg

Single inspection dosage

<1.5µgy

Wire resolution

0.1 mm metal line

Steel penetration:

32 mm armor plate

Film safety:

for ISO 1600

Maximum leakage radiation

<0.3 µgy /hr





Competitive Advantage:



Network interface : Could be connect local area network and support multi terminal check baggage at same times



Simple operation by mouse: without keyboard and work table , control by mouse , save space
